LED lighting · Prototype to finished build

Hamburger Ötzi

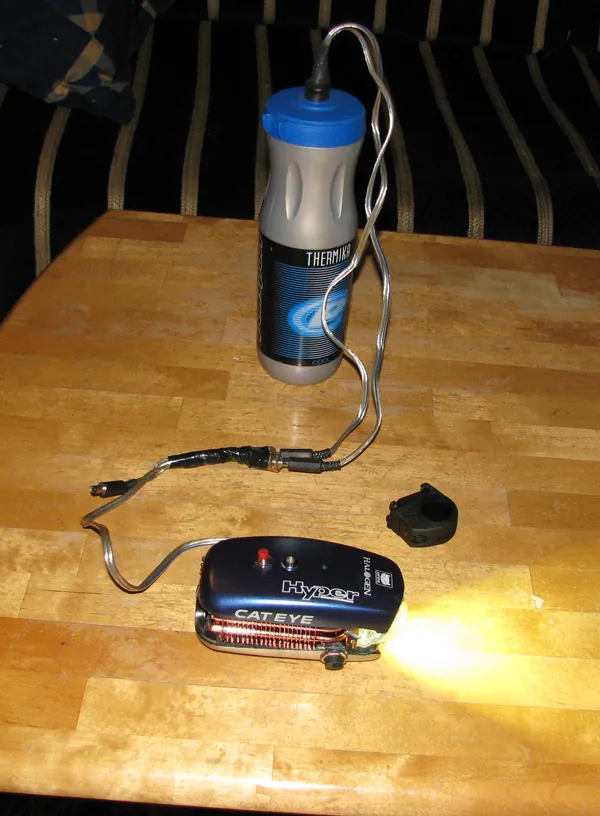

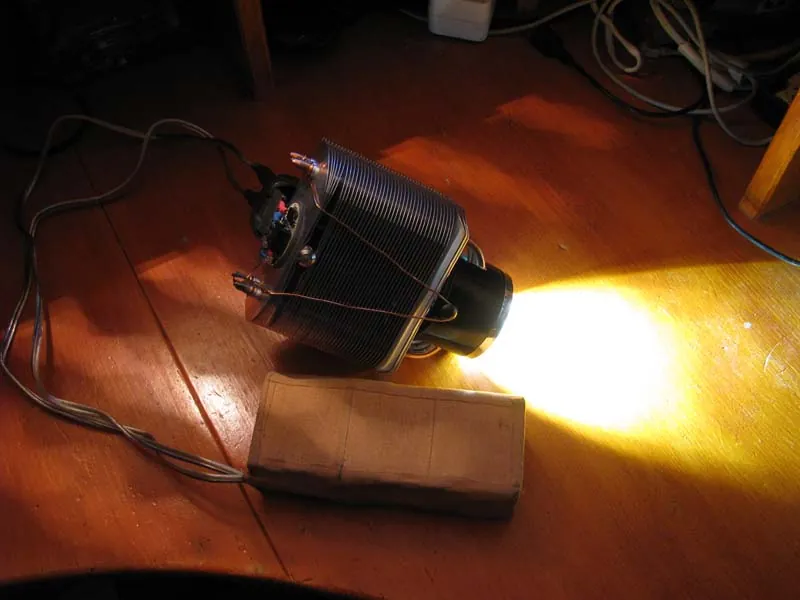

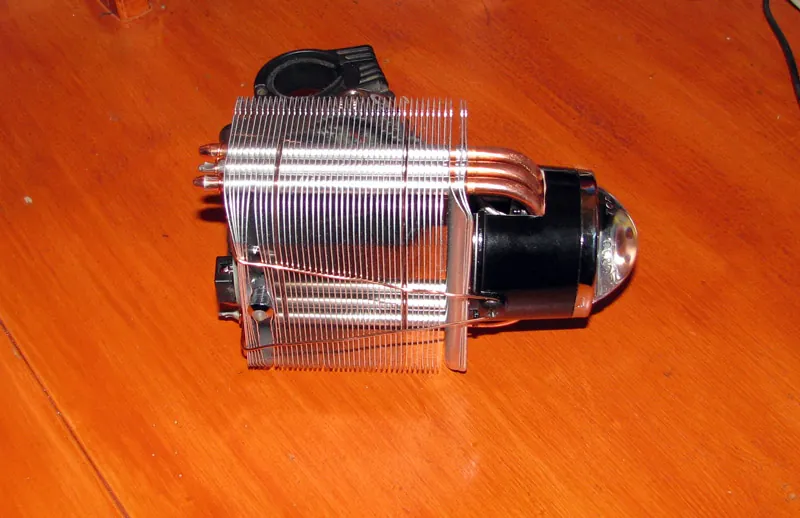

The LEDs worked; the prototype was simply too big. I rebuilt the three-LED light inside a Cateye HL-1500 housing, with a smaller copper heat-pipe cooler and a handlebar remote connection. The layered construction and the Ötzi cooler gave it its name: “Hamburger Ötzi.” The gallery includes the earlier prototype.

Light source

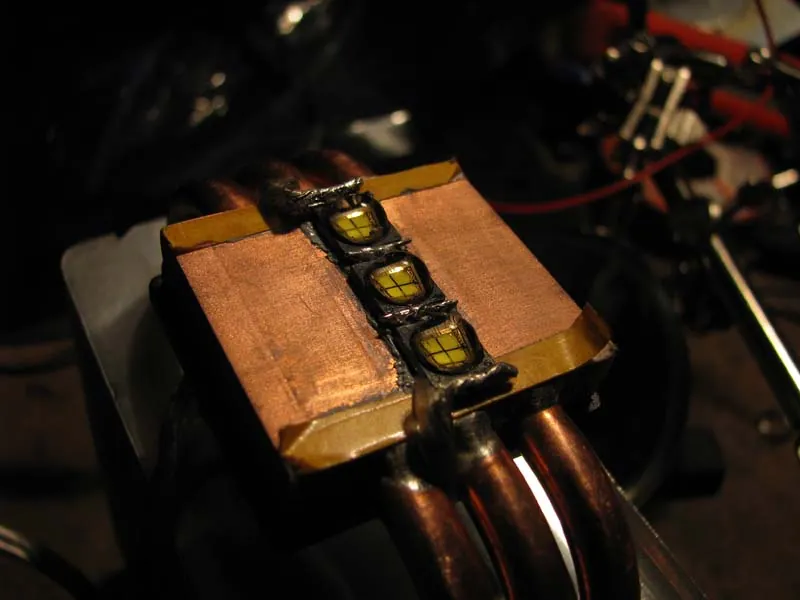

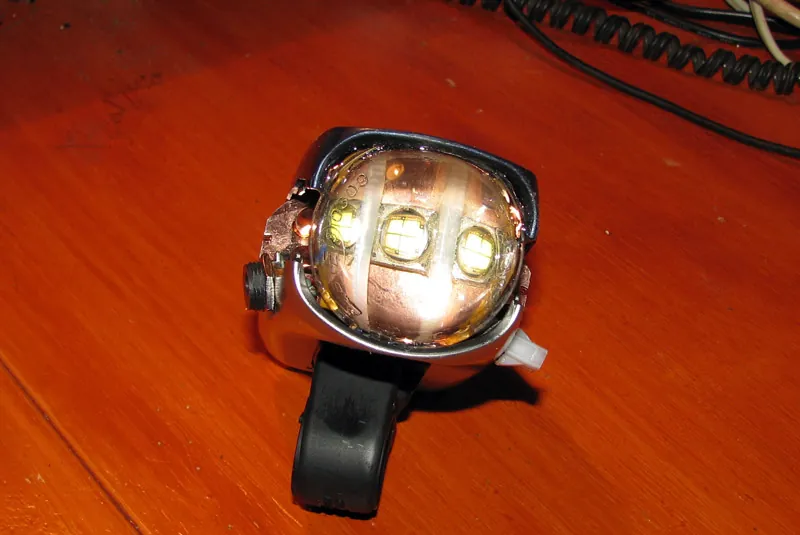

Three Cree MC-E LEDs

Enclosure

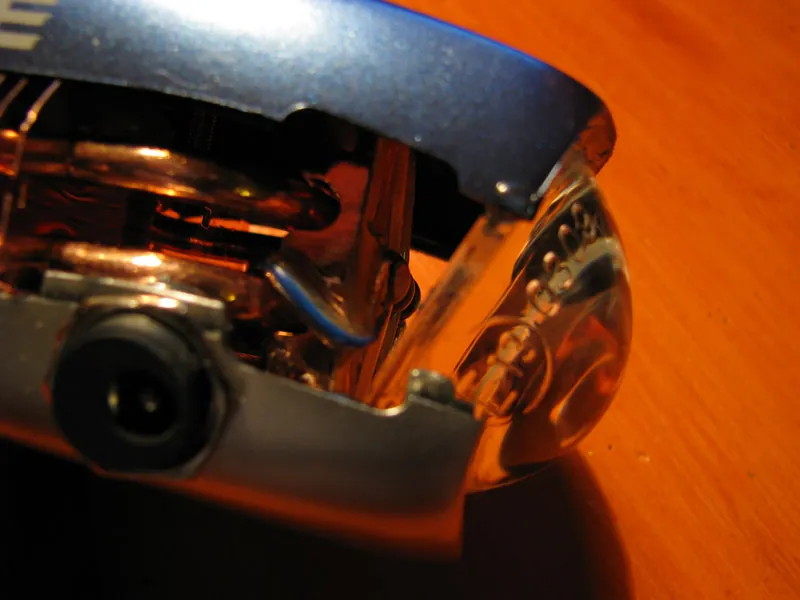

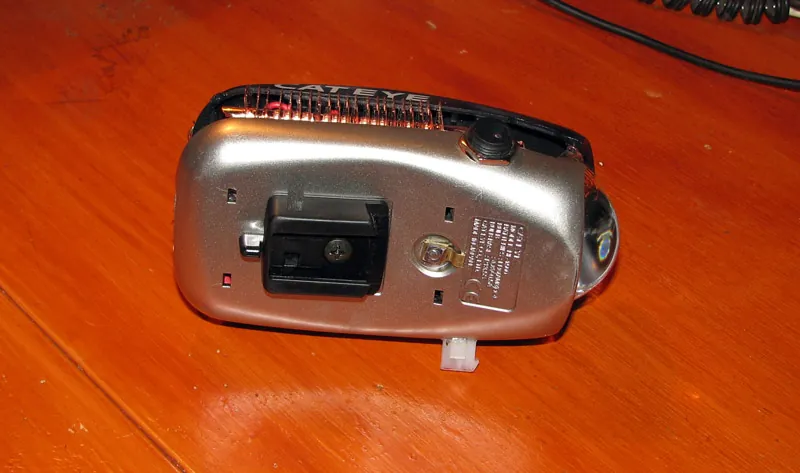

Modified Cateye HL-1500

Cooling

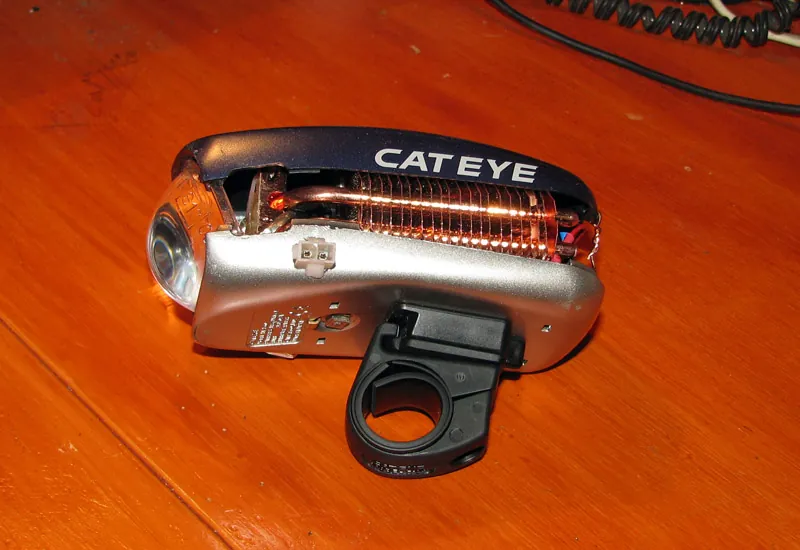

Copper heat-pipe cooler

Work shown

Electronics integration, optics, cooling & enclosure adaptation
